| Specification | ||
| Collating Speed | Up to 2,000 Nails per Min | |
| Nail Size | Length | 1-1/4″~4″ (32 ~100mm) |
| Diameter | 0.099″~0.162″ (2.51~4.11mm) | |
| Strip Spec | Angle | Any Angle |
| Nails per Strip | 20~40 Nails | |
| Electric Power | 45KVA, 3Phase 220V, 50/60 Hz | |
| Air Consumption | 500 Litter per Min | |
| Electronic Mfg | As Specified by Customer | |
| Pneumatic Mfg | As Specified by Customer | |
| Space Required | 27L x 9.5W x 7H in feet (8,300L x 2,900W x 2,200H in mm) | |
| Weight | 7,700 Lbs (3,500 Kg) | |

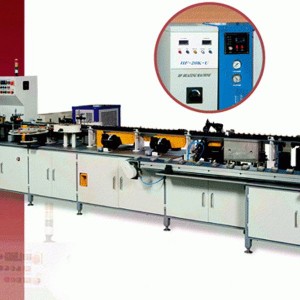

This horizontal gap adjustable dual lane belt feeding paper taped nail collator will produce 2,000 nails per minute with precise angle, spacing and head arrangment.
Equipped with round end feeding rail, adjustable dual lane belt, induction nail pre heater, roll feed tape cartridge, quick cooling unit, rotary cutter, spary roller coater and automatic adjustable stacker.
